Description
Easy-to-use and versatile MIG, Stick and TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel. Includes TIG Kit #301337.
WHAT'S INCLUDED
The Multimatic 215 is DC Only - it will not TIG Weld aluminum
All-in-one Multiprocess Capabilities:
MIG, TIG, or Stick. You choose! Take on a variety of tasks with one machine.

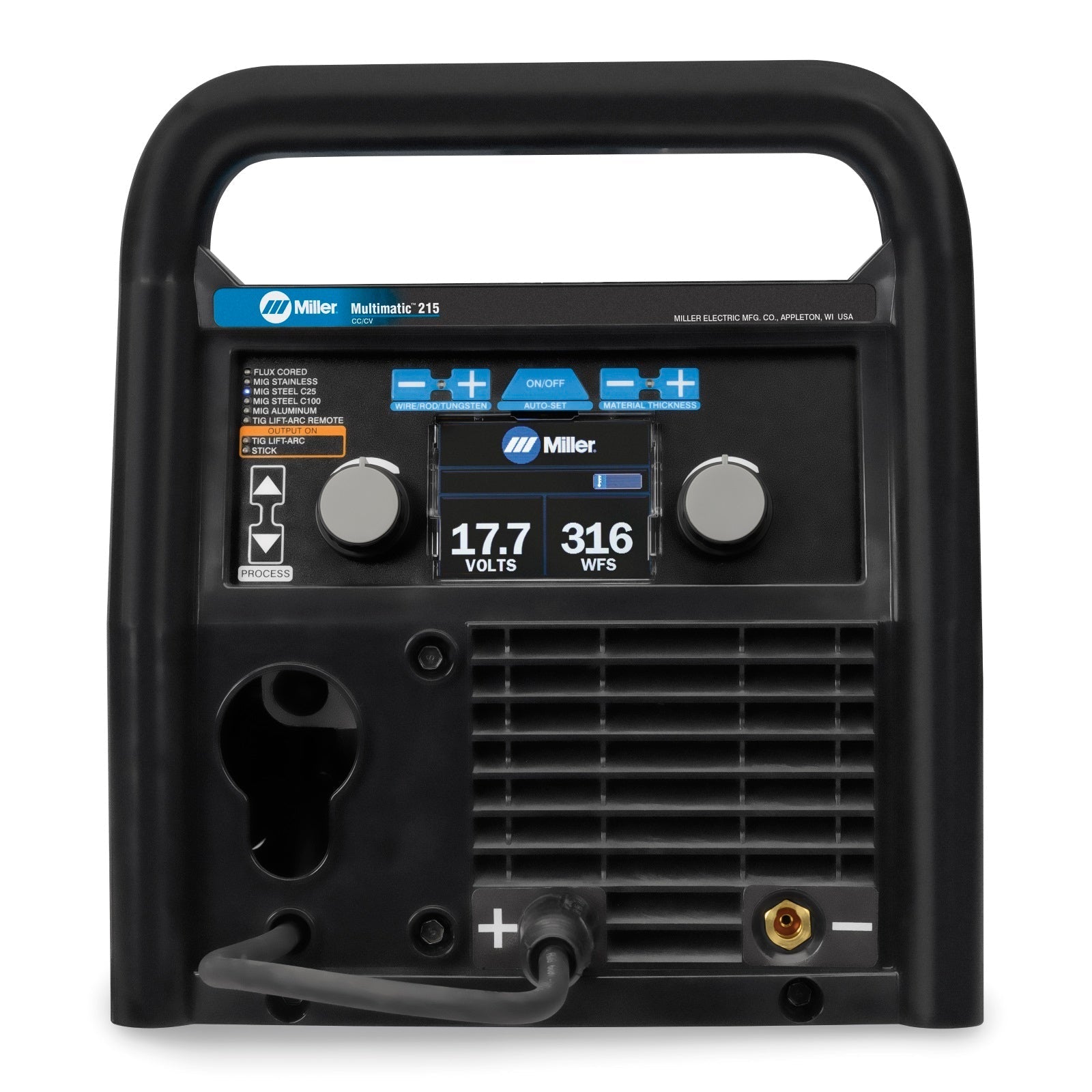

Easy-to-use color LCD Interface:
Set up is a breeze for all three processes with the LCD interface.
Up to 230 amps of Power:
Capable of welding up to 3/8-inch mild steel in a single pass.
Portable Convenience:
Weighing 38 pounds, the Multimatic 215 has a small footprint and a whole lot of power.
Excellent Arc Characteristics:
Extremely stable arc with minimal spatter for less cleanup; Smooth-Start for consistently smooth MIG arc starts.
Smooth-feeding Wire Drive:
Angled wire drive and Quick-Select drive roll for smooth, reliable feeding and fast, no-hassle wire changes.
Multi-voltage plug (MVP):
Easily connects to common 120 V or 240 V power outlets; no tools required. Just choose the plug that fits the receptacle and connect it to the power cord.
Auto-Set Elite:
Fast and easy settings for multiple materials and processes to help you get welding quickly. Auto-Set Elite allows you to fine-tune weld settings while in Auto-Set mode.
Fan-On-Demand technology:
Power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.
Thermal overload protection:
Automatically shuts down the unit if airflow through the unit is blocked or the duty cycle is exceeded.
Auto Spool Gun Detect:
Automatically detects when a MIG gun or spool gun is connected, eliminating the need for a switch.

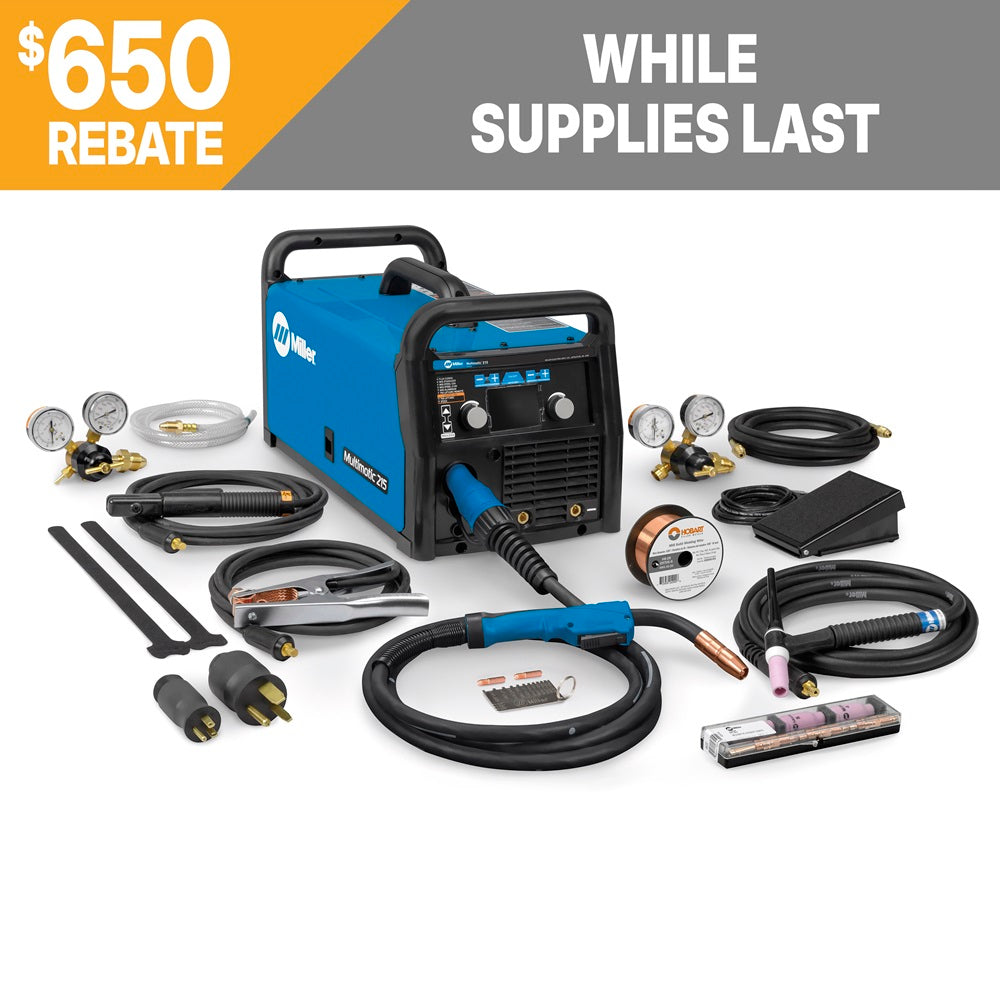

Comes complete with:
• Power cord and MVP plugs for 120 Volt and 240 Volt
• 10Ft MDX 100 MIG gun and cable assembly (Accepts Miller MDX Consumables)
• Electrode holder and 25 mm Dinse-style connector
• Work cable and clamp and 25 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon and AR/CO2 mix
• Hobart spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• Material thickness gauge
• Hook-and-loop cord wraps
TIG Package comes complete with:
• Weldcraft A-150 TIG torch with Dinse-style connector
• RFCS-RJ45 foot pedal
• Flow gauge regulator with 12 ft. (3.7 m) gas hose
• AK2C torch accessory kit
