Description
Description

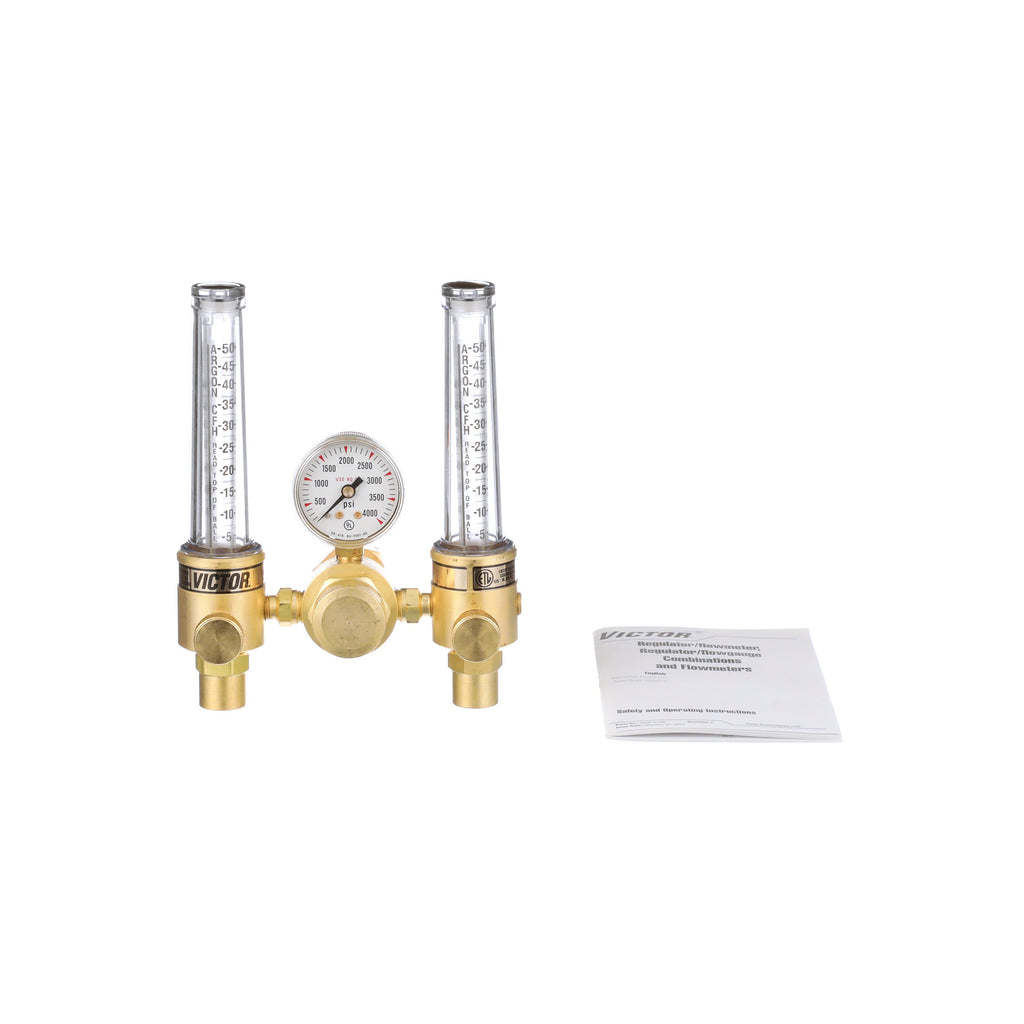

The Victor DFM 150 Dual Flowmeter 0781-1153 allows two operators to work one cylinder of argon, helium or mixed shielding gas. The DFM 150 has a solid brass body with two, individually controlled flowmeters capable of delivering up to 50 cfm of argon gas and 150 cfm of helium. Flow tubes are marked and calibrated for both argon and helium.
Highlights
- Designed to monitor two separate processes or gas flows
- Ideal for applications where shielding gas and back purge requirements are needed
- Designed to offer convenience for the maintenance and fabrication industries
- Brass Body
- Teflon seat mechanism
- Sintered inlet filter - bronze
- Music wire- spring
- Piston -brass
- Cover tube - lexan
- CGA580
- Flow range (SCFH) 5-50 Argon and 20-150 Helium
- Max Inlet 3000psi
- HP Gauge 0-4000
Industries
- Industrial and General Fabrication
- Repair and Maintenance
- Structural Steel Fabrication
- Light Fabrication
