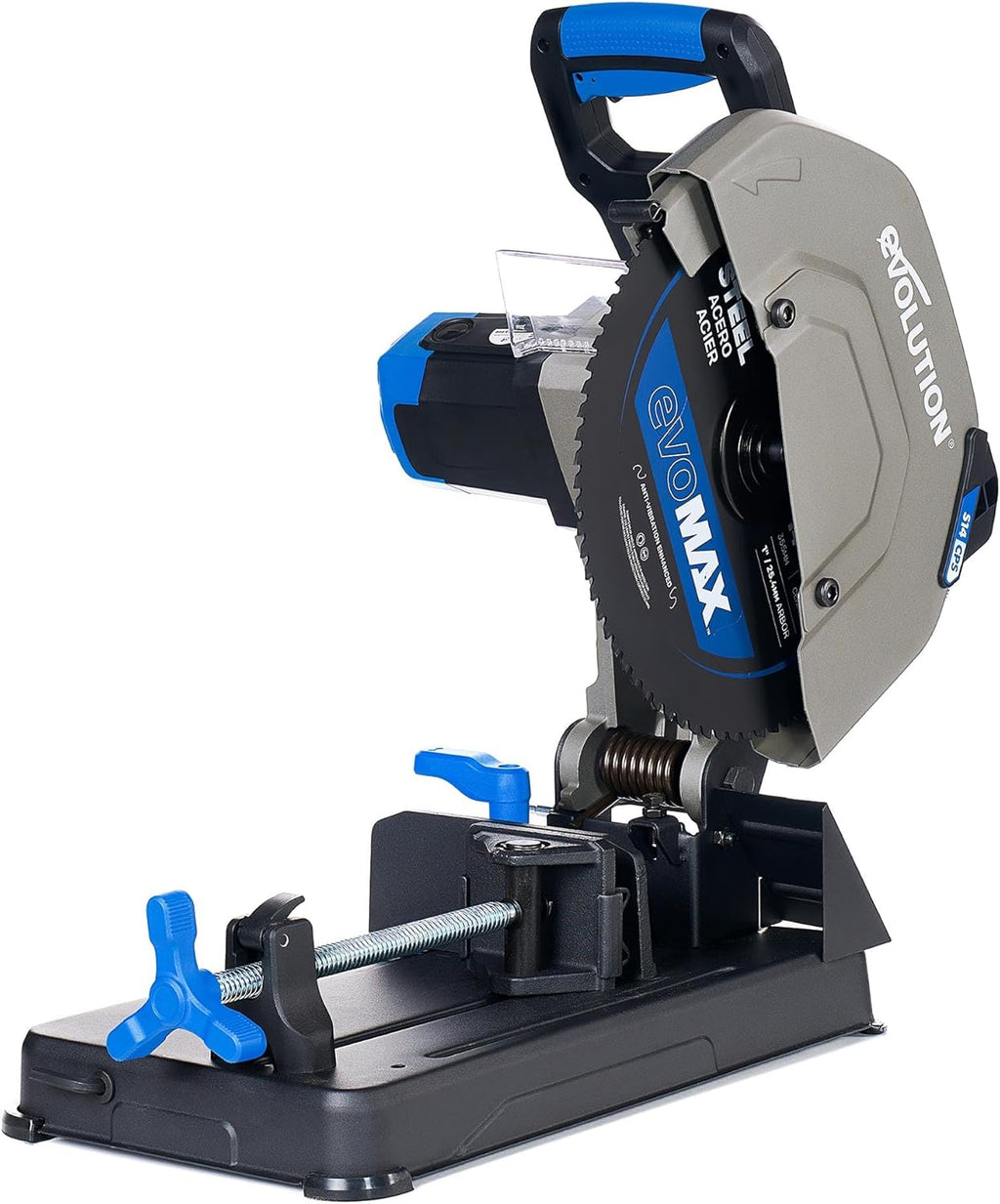

Evolution S14CPS: Metal Cutting Chop Saw With 14 in. EVOMAX14ST

Introducing Evolution's Next Generation 14” Metal Cutting Chop Saw: the S14CPS.

This Next Generation Chop Saw includes Two new Cutting-Edge Enhancements:

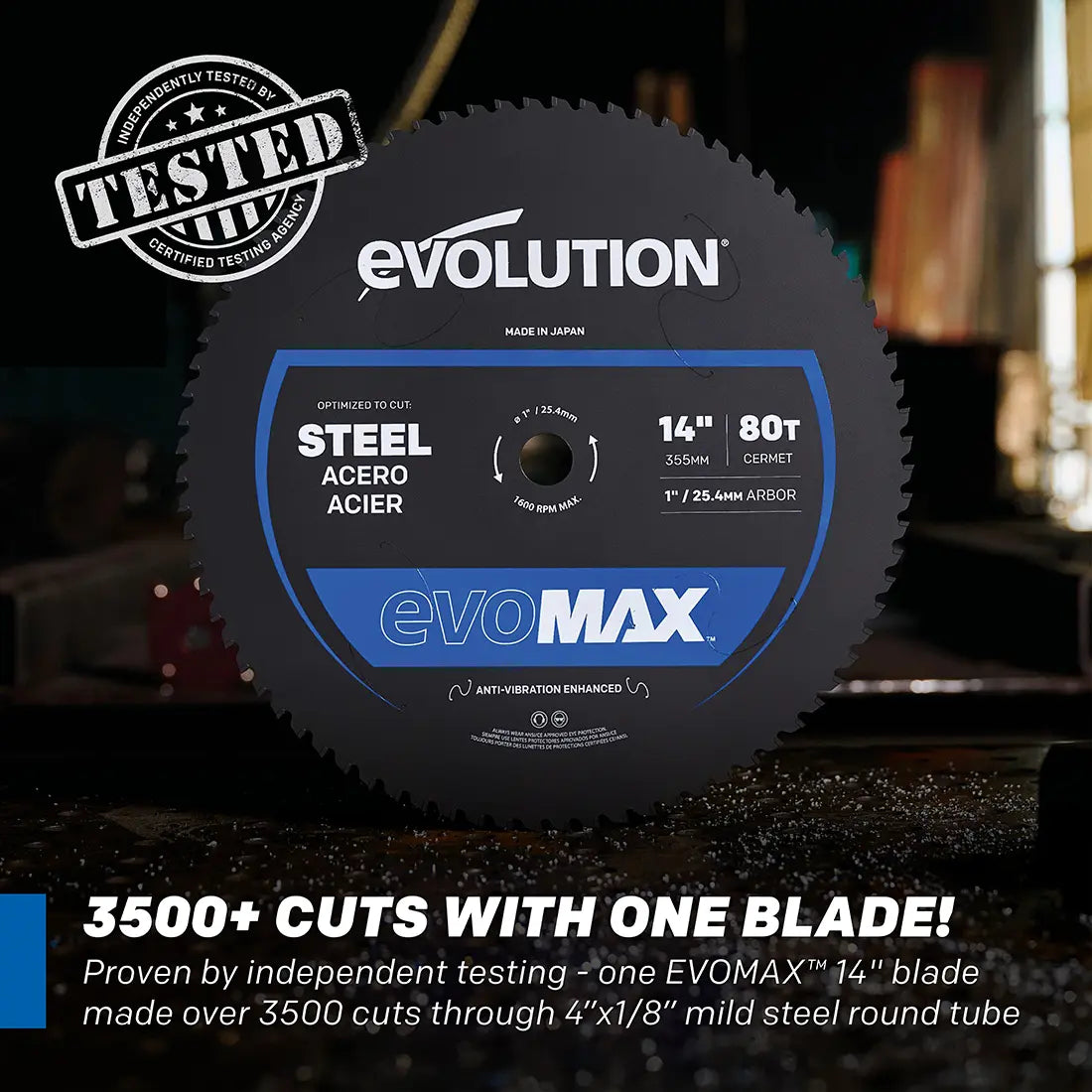

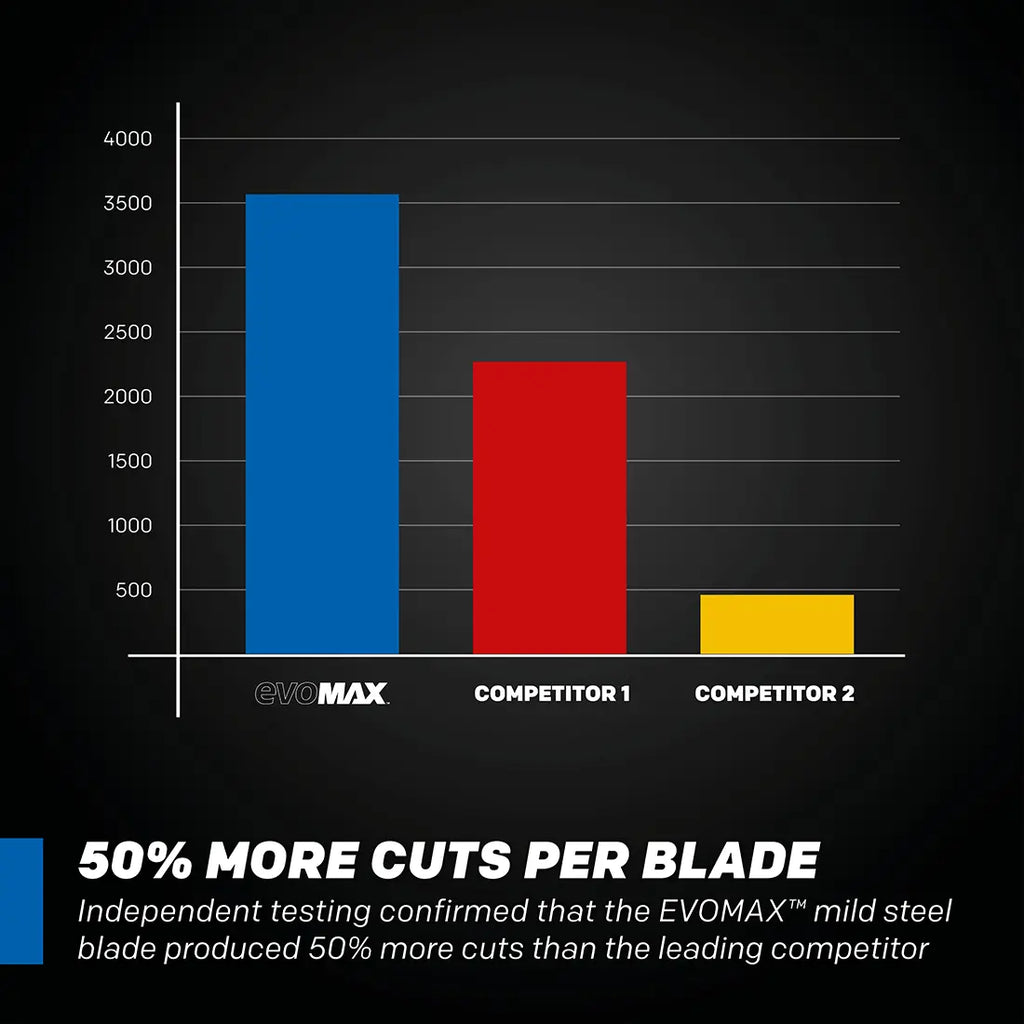

1. NEW EVOMAX 14” Mild Steel Blade that’s been independently tested to deliver over 3,500 cuts*

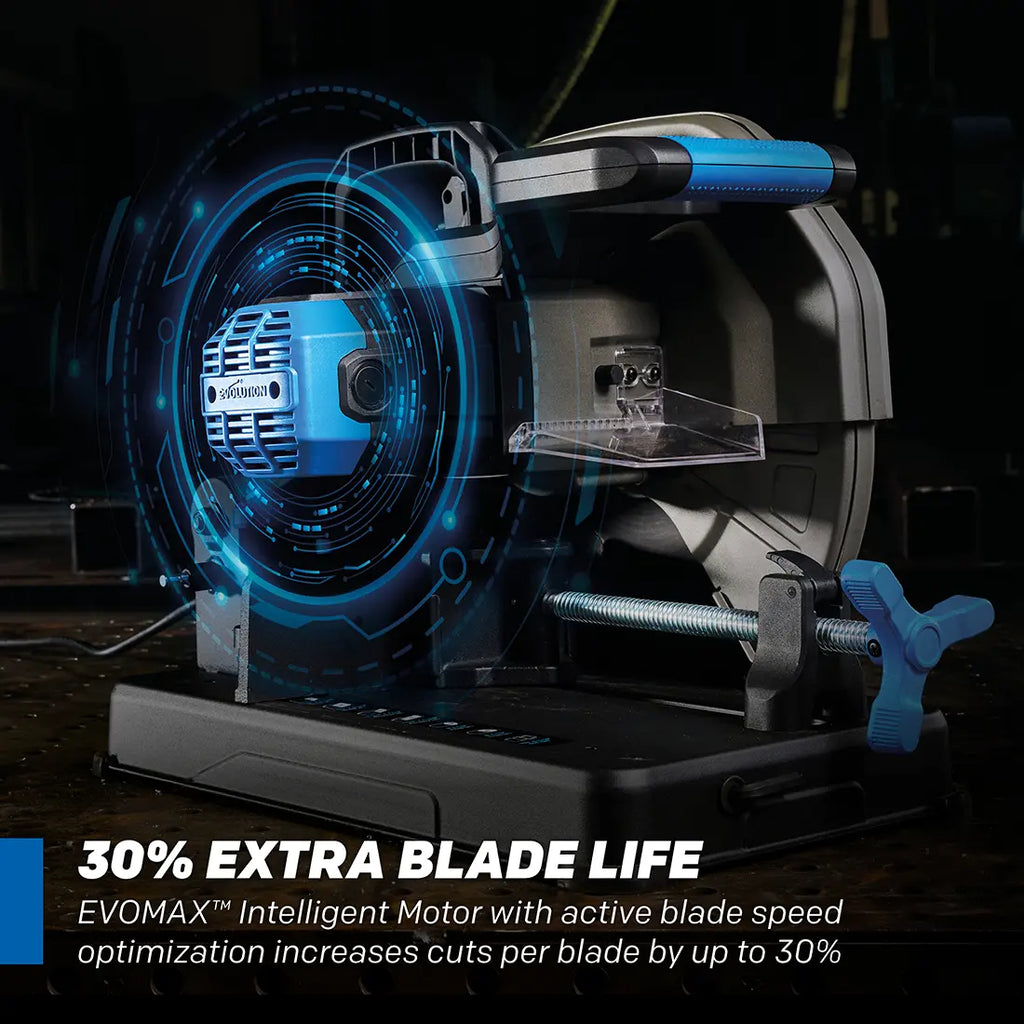

2. NEW EVOMAX Intelligent Motor Technology, which can extend blade life by an additional 30%!

This saw was designed to empower you to achieve and deliver professional fabricators the most efficient cutting results.

We built the best Metal Cutting chop saw that we’ve ever made to make sure it’s the best saw that you’ve ever owned.

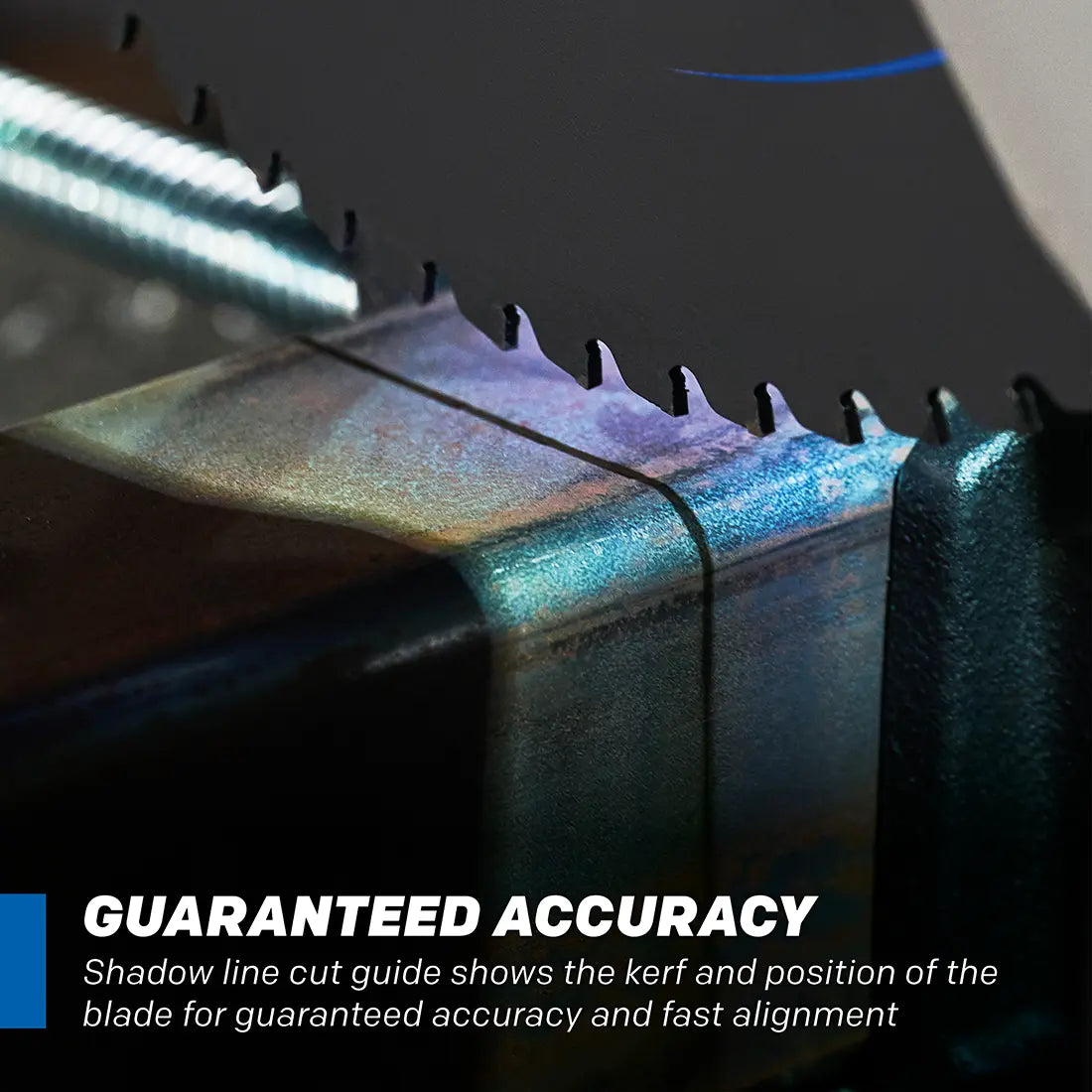

Shadow Line: Engineered for reliability and peace of mind, the Shadow Line cutting guide shows the exact cutting path for supreme cutting accuracy.

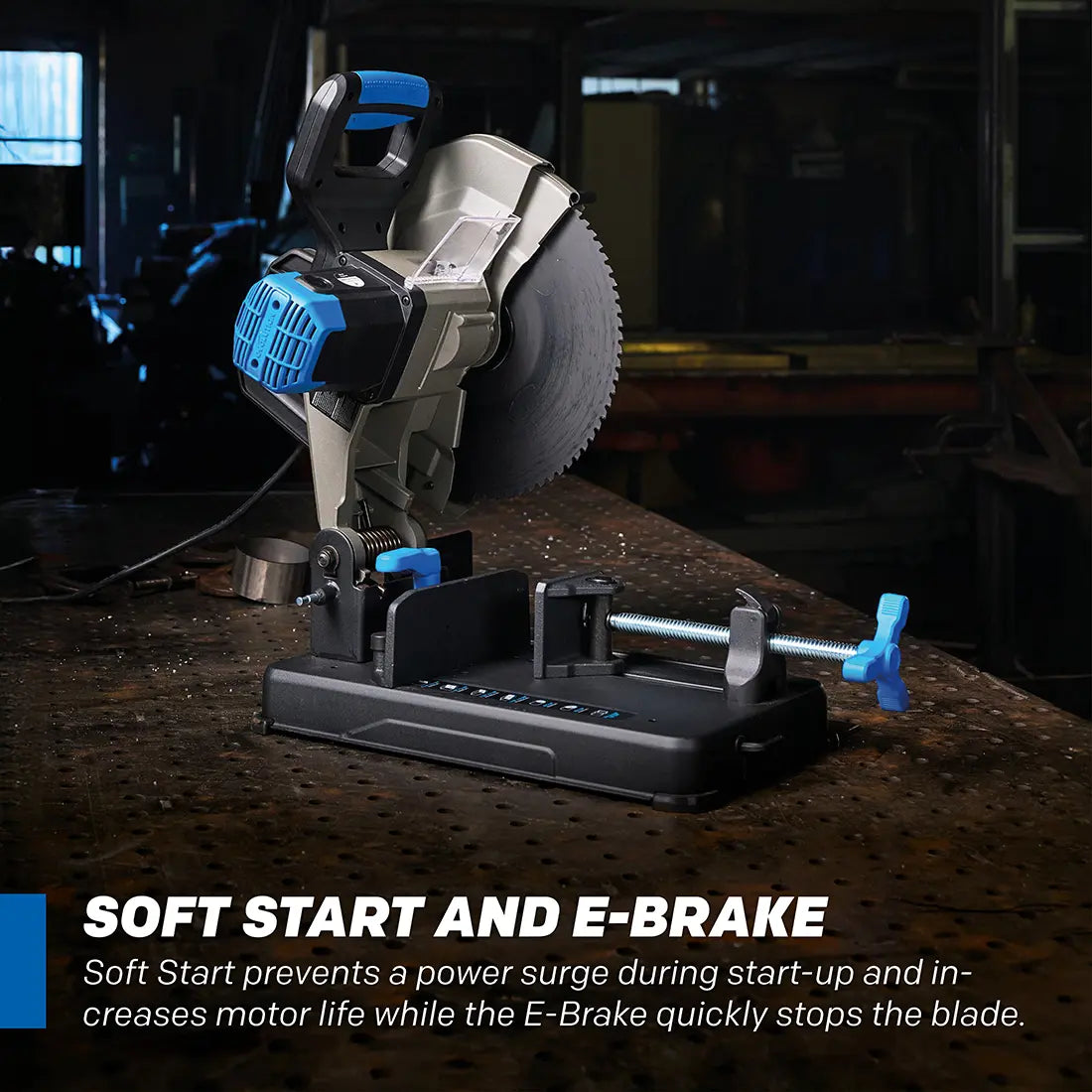

E-Brake: Prevents injuries by stopping the blade within 2-3 seconds once the trigger is released.

Soft Start Motor: Minimizes mechanical stress on the motor during startup, extending cutting life and reducing the risk of tripping some U.S. breakers. By smoothing the initial peak current, the soft start helps prevent excessive current surges as the blade reaches full speed.

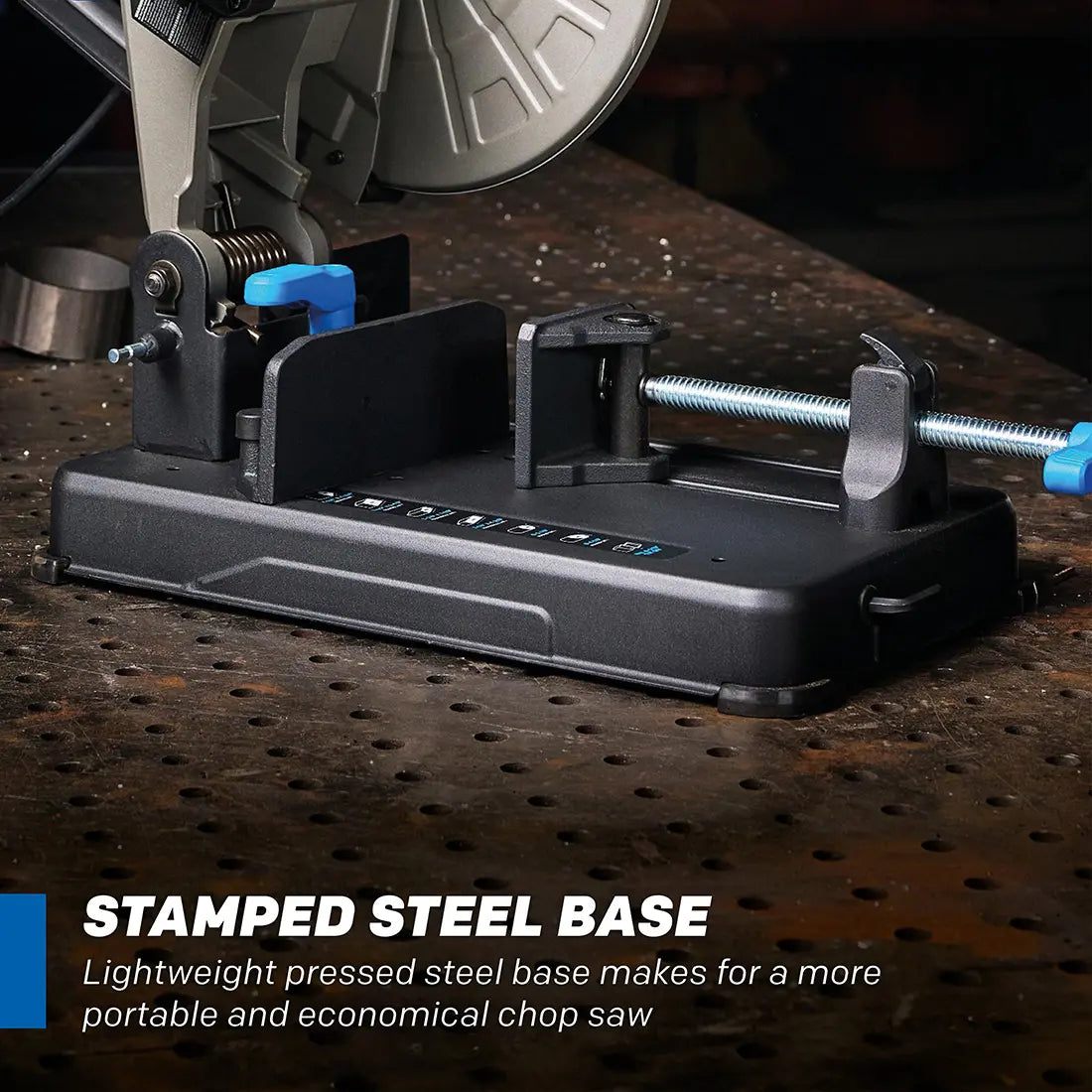

Stamped Steel Base: Built with a pressed steel base, the S14CPS offers excellent strength and durability. Its solid construction resists bending, providing consistent and reliable cuts day after day.

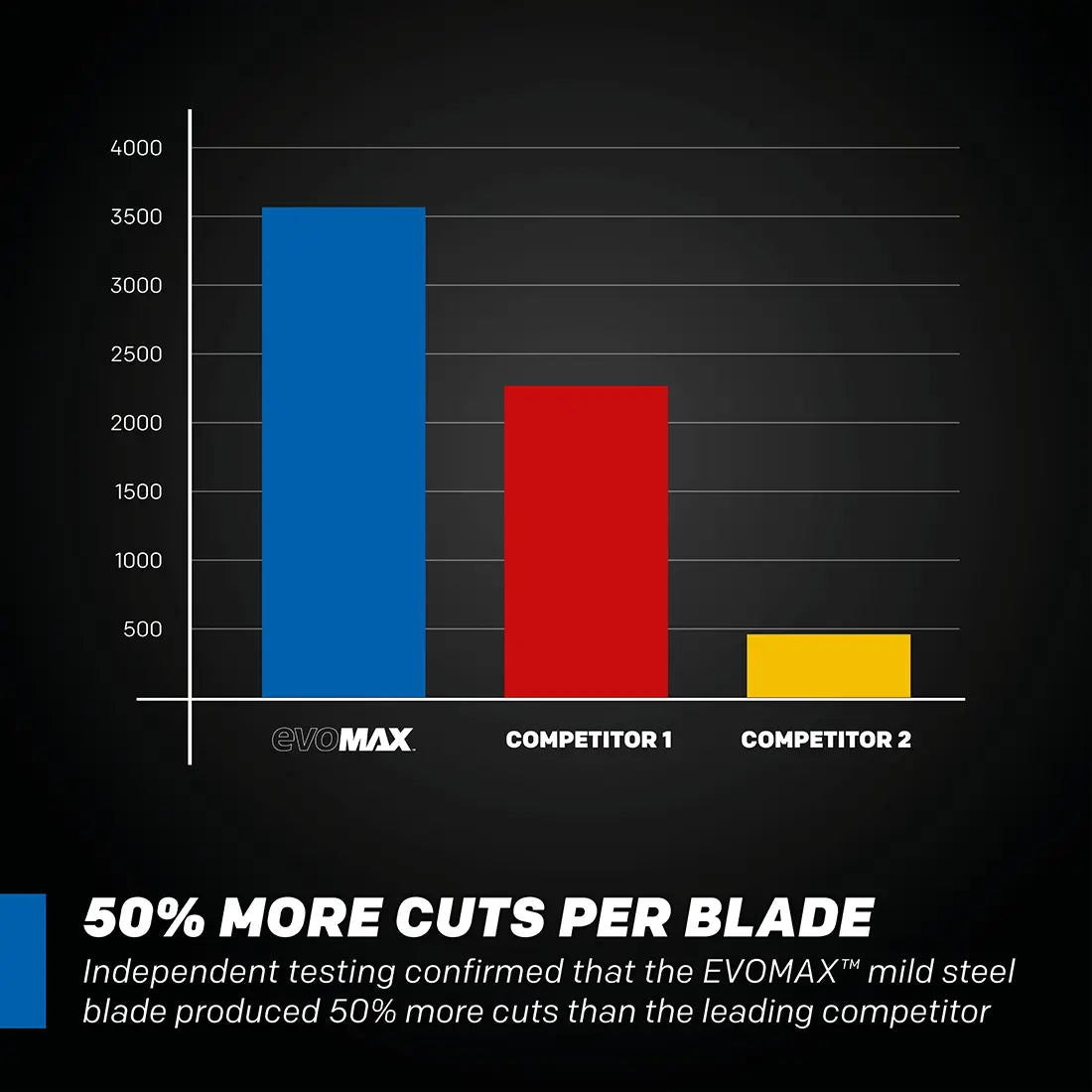

*3,500+ cuts with one blade through 4”x1/8” mild steel round tube and 4” x 1/4” mild steel plate. Independently tested.

Additional features:

• Cast iron fence – exceptionally durable and resistant to warping or bending, ensuring consistent precision over long-term use.
• Powerful 15amp motor to tackle the toughest cuts.
• ACME vice thread, engineered for enhanced strength and durability, surpasses standard vice threads in robustness and performance.
• Ergonomic, ambidextrous trigger with comfortable textured grip.

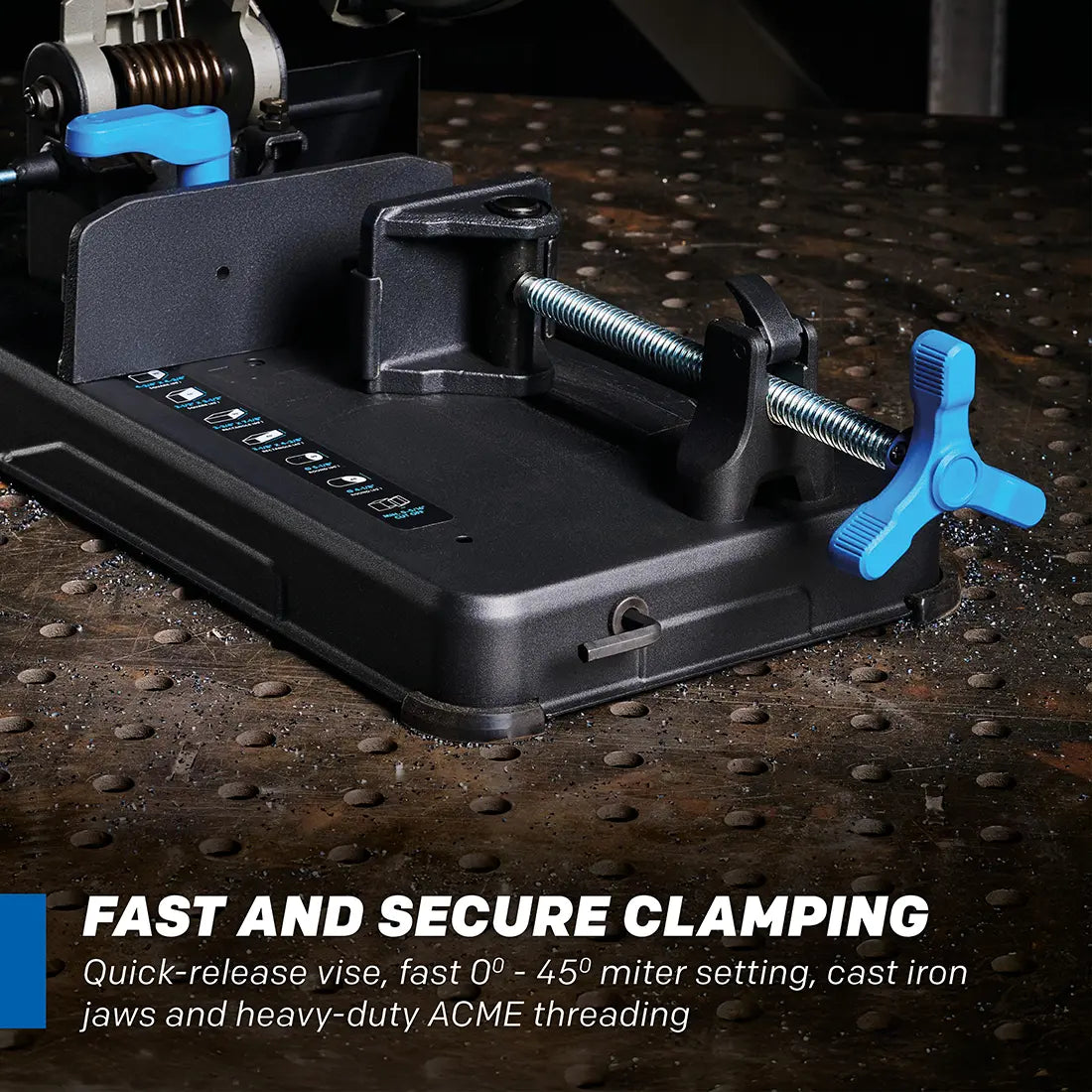

• Quick-release vice with robust square-threaded rod for fast & secure clamping.
• Compact design with a head lock-down pin & carry handle for easy transportation.
• V-Block workpiece clamp insert for secure fixation of square tube.
• Easy blade change with integrated tool storage.
• 3 Year warranty.

Cutting Capacities

Mild Steel Plate (Max Thickness):	1/2 In.
Stainless Steel Plate (Max Thickness):	13/64 In.
Square Tube at 90° (Mild Steel):	4-3/4 x 4-3/4 In.
Square Tube at 45° (Mild Steel):	3-1/2 x 3-1/2 In.
Rectangle Tube at 90° (Mild Steel):	3-3/4 x 7-1/8 In.
Rectangle Tube at 45° (Mild Steel):	3-1/8 x 4-3/8 In.
Round Tube at 90° (Mild Steel):	5-1/8 In.
Round Tube at 45° (Mild Steel):	4-1/8 In.
Minimum Cut Off Piece Length:	5/16 In.



Specifications

Machine Spec

Motor (120V 60Hz):	15A
Speed No Load:	1100 rpm
Max. Bevel (Left):	45°
Cable Length:	10 ft



Blade Spec

Blade Dia.:	14 In.
No. of Teeth:	80
Bore:	1 In.
Kerf:	.094 In.
